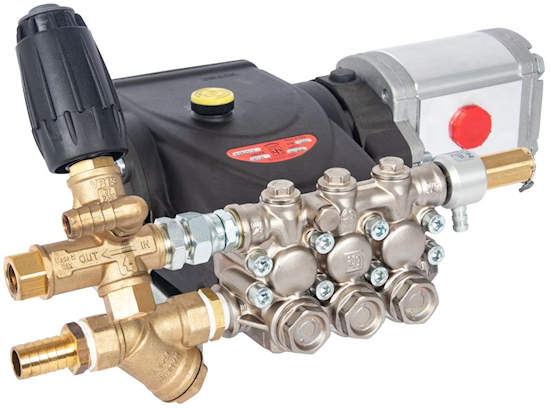

Hydraulic Jet Wash (Unit Only) 15L to 20L/min 250Bar

This hydraulic motor/high pressure pump unit is ideal for use with agricultural tractors, construction plant, municipal vehicles etc which have a hydraulic power supply readily available. The unit is fitted with a water inlet filter, a water pressure control/unloader valve, and a water pressure safety valve. This is supplied as a unit only; any hoses, lance etc need to be purchased separately.

• ● Manufacturer: Interpump
• ● Model: H500-1004
• ● Hydraulic driven pressure washer unit
• ● Pressure regulator / unloader valve
• ● Safety relief valve
• ● Water inlet filter

• ● Hydraulic supply/return hoses are NOT included
• ● Water suction/high pressure hoses are NOT included
• ● Lance is NOT included

• ● 250 bar (3625 psi) maximum water pressure
• ● 130 Bar (1885 psi) hydraulic oil pressure required

• ● 15 litres/minute maximum water flow rate @ 1450rpm
• ● 42 litres per minute hydraulic oil flow required @ 1450rpm
• ● 9.7Hp, 7.13kW @ 1450rpm

• ● 20 litres/minute maximum water flow rate @ 1950rpm
• ● 56.5 litres per minute hydraulic oil flow required @ 1950rpm
• ● 13.1Hp, 9.63kW @ 1950rpm
