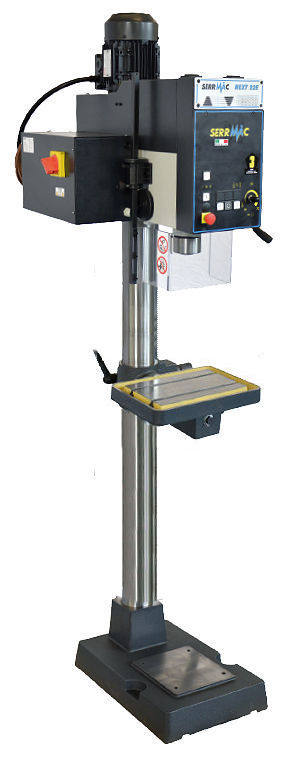

Pillar Drill, Variable Speed

This Italian made pillar drill is belt driven with an inverter motor providing electronic speed variation from 270rpm to 4200rpm. A drilling capacity of 22mm and tapping capacity of 14mm in mild steel is via a Morse Taper 2 spindle which can be fitted with an optional chuck. Taps can be withdrawn using the reverse rotation feature. This version of the V22E drill has a tilting table.

Note: chucks are an optional accessory which should be ordered separately.

• ● Manufacturer: Serrmac
• ● Model: V22E-1852
• ● Single Phase Industrial Pillar Drill
• ● Tilting work table
• ● 750W 230V electric motor
• ● Variable Speeds 270 revs/min to 4200 revs/min
• ● 5 Speed ranges (variable inverter drive)
• ● 22mm Drilling Capacity in Mild Steel
• ● 14mm Tapping Capacity
• ● 120mm Spindle Travel
• ● 150mm Throat
• ● 2MT Spindle
• ● Dimensions: 600 x 680 x 1950mm high
• ● Weight: 220 Kg

  Three years warranty
