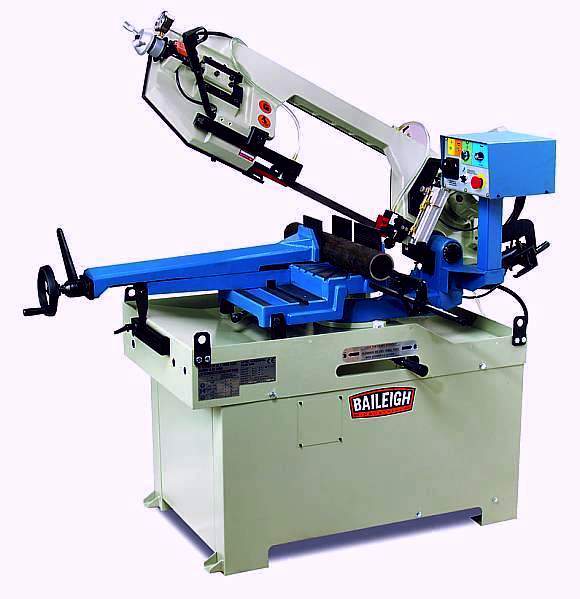

BAILEIGH BS-350M - 220V
Metal Bandsaw, 270mm dia, 220 x 350mm rect, Dual Swivel Head Mitre, 220V
A horizontal metal cutting bandsaw for fabrication shops. With direct drive, variable blade speed, both manual and hydraulic descent, and a quick vice. Mitre cuts can be done by swivelling the cutting arm to the left or right.
- ● Manufacturer: Baileigh
- ● Model: BS-350M-220V
- ● Gearbox driven; no belts to adjust or break
- ● Inverter driven motor giving variable speed
- ● Coolant pump to wash away chips, cool and lubricate the blade
- ● Swivel head for mitre cuts; vice and material stays in place
- ● Head swivels up to 60 degrees to the right, and up to 45 degrees to the left
- ● Roller bearing/carbide blade guides
- ● Hydraulic descent control
- ● Manual return
bandsaw product code : R081.2007
| Specifications | |
|---|---|
| Power | 220V, 50Hz, 1-Phase |
| Motor | High Torque 1.5Kw / 2HP (AC) |
| Mitre Angle | 0 - 60° right and 45° left |
| Capacity Rectangle 90°/ 45° / 45° left | 350 x 220 mm / 240 x 160 mm / 185 x 110 mm |
| Capacity Round 90°/ 45° / 60° / 45° left | 270 mm / 240 mm / 160 mm / 210 mm |
| Capacity Square 90°/ 45° / 60° / 45° left | 260 x 260 mm / 220 x 220 mm / 150 x 150 mm / 180 x 180 mm |
| Table Height | 889 mm |
| Blade Speed | 20 - 85 mpm |
| Blade Size | 25 x 1 x 3160 mm |
| Shipping Weight | 431 kgs |
| Shipping Dimensions | 1753 x 762 x 1219 mm |
