SIP 01593

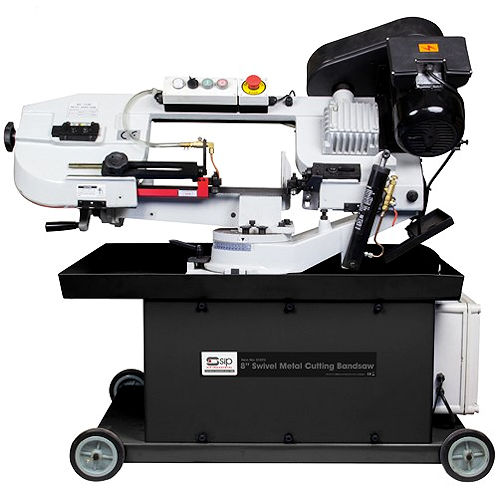

Metal Bandsaw, 178mm dia, 178 x 210mm rect, Swivel Arm Mitre
A horizontal metal cutting bandsaw for fabrication shops and small workshops. Mitre cuts can be done by swivelling the cutting arm by up to 45 degrees.
- ● Manufacturer: SIP
- ● Model: 01593
- ● Belt driven with 4 speed gearbox
- ● Swivel head for mitre cuts; vice and material stays in place
- ● Hydraulic descent control
- ● Manual return
bandsaw product code : R081.1296
| Specifications | |
|---|---|
| Power | 230V, 1-Phase |
| Motor | 1.1Kw / 1.5HP |
| Mitre Angle | 1 - 45° |
| Capacity Rectangle 90°/ 45° | 210 mm x 178 mm / 140 mm x 85 mm |
| Capacity Round 90°/ 45° | 178 mm / 127 mm |
| 4 Blade Speeds | 22 / 33 / 45 / 65 mpm |
| Blade Size | 2362 mm |
| Shipping Weight | 192 kgs |
| Shipping Dimensions | 1150 x 730 x 1290(H) mm |
